Sizing Columns and Rows

There are several strategies to size columns and rows of a Table.

   table = new string[][] {new string[]{"Sales","Jan","Feb","Mar","Apr","May","Jun",
            "Jul","Aug","Sep","Oct","Nov","Dec","Notes"},new string[]{"Suspenders",
            "36","59","20","45","63","50","26","10","50","64","60","68",""},new
            string[]{"Pillows","78","66","72","27","74","44","21","46","62","48","39",
            "90",""},new string[]{"Garden gnomes","13","15","10","14","14","19","18",
            "16","12","12","11","11","Febrile activity over the last few years — new "+
            "strategy required"},new string[]{"Hair curlers","49","25","40","31","61",
            "64","58","32","66","28","33","48",""},new string[]{"Pop corn","56","96",
            "-","35","46","85","56","65","86","56","84","39","Temporary closure in "+
            "March"},new string[]{"Door mats","70","67","57","55","42","71","78","56",
            "78","63","56","77",""},new string[]{"Firecrackers","86","51","12","23",
            "41","44","81","47","22","47","51","90","Unresolved legal issues in some "+
            "countries\nExtremely seasonal activity"},new string[]{"Lemon squeezers",
            "23","27","28","43","12","33","47","48","34","17","19","26",""}};

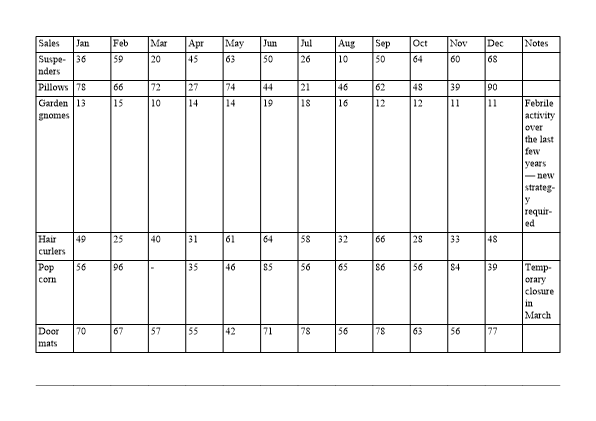

   tb = new Table();
  // Columns share the width evenly by default, and cell content takes as much height as needed
   tb.AddRows(table);

The default behaviour is not quite right in this case. Let’s change the columns widths so that row titles auto-fit, data is fixed witdth, and last column takes remaining space

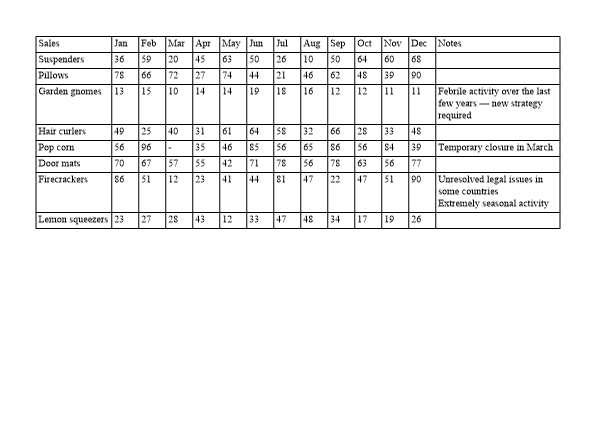

   tb = new Table();
  // Auto-fit first column, fixed-size widths for data, last column takes remaining width
   colwidths = new int[] {0,27,27,27,27,27,27,27,27,27,27,27,27,-1};
  // Row heights will be the minimum required to fit cell content within column widths
   tb.SetColumnWidths(colwidths);
   tb.AddRows(table);

This is better. Now, the default way to handle row size is to take as much height as necessary to wrap all the cell contents at their column width. We can impose a limit if cell content is unknown. It is not a problem in this example, but let’s still have a look at what happens.

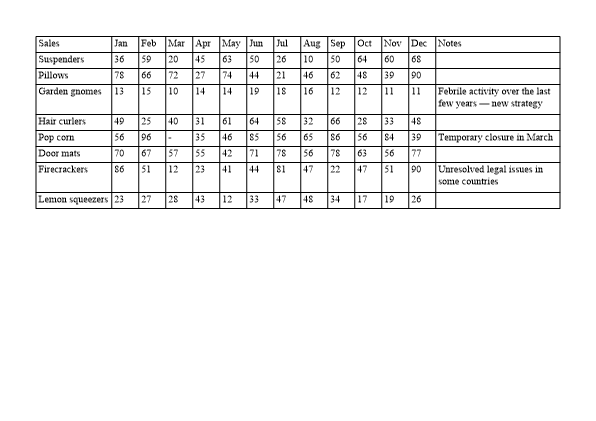

   tb = new Table();
   tb.SetColumnWidths(colwidths);
  // Impose a maximum row height - tail of cell content might be clipped off
   tb.SetRowMaxHeights(30);
   tb.AddRows(table);

Now only the leading content of the cell is displayed, and in our example, the last line of the second-to-last row notes has disappeared. A finer strategy to prevent the leading cell content to always win over the trailing cell content is to format cell content with newlines and disable cell wrapping.

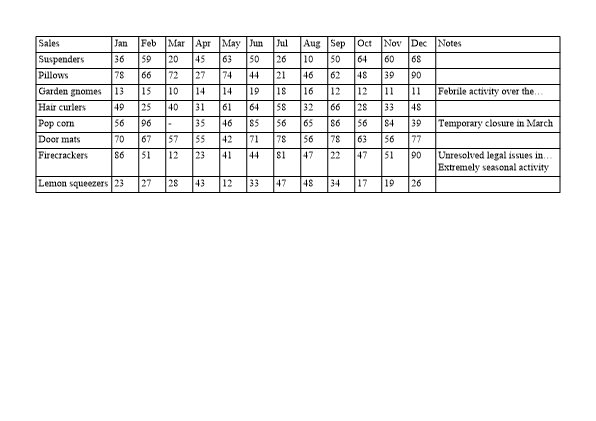

   tb = new Table();
   tb.SetColumnWidths(colwidths);
  // Another strategy : clip without wrapping - only explicit newlines will take height
   tb.SetCellWrap(false);
   tb.AddRows(table);

At that point, leading line content wins over the trailing line content, although if there are too many lines for the maximum row height, the last few lines will disappear – and there’s nothing we can do about it apart from raising the maximum row height.
